GRK Rigid axle (for reduction gear)

〇 Applicable chassis
・GRK5
・GRK4
・GRK3 AWD (*Note ①・※Note ③)
・GRK3 RWD
・GRK Global・Global Standard Series (AWD specification) (*Note 1・*Note 3)
・GRK Global/Global Standard Series (RWD specification) (*Note 2, *Note 3)

*Note 1. Can be used as a front differential for AWD specifications.

*Note 2: [R31W269] GRK GLOBAL RWD reduction gear adapter or [R31W325] GRK3 RWD reduction gear adapter is required for installation.

※Note ③…[R31W007] When installing this product using the GRK standard bevel gear (16T), the genuine button screw will interfere with the axle, so be sure to use the [R31W251] M2.6X5mm flat head screw. please.

〇 commodity explanation

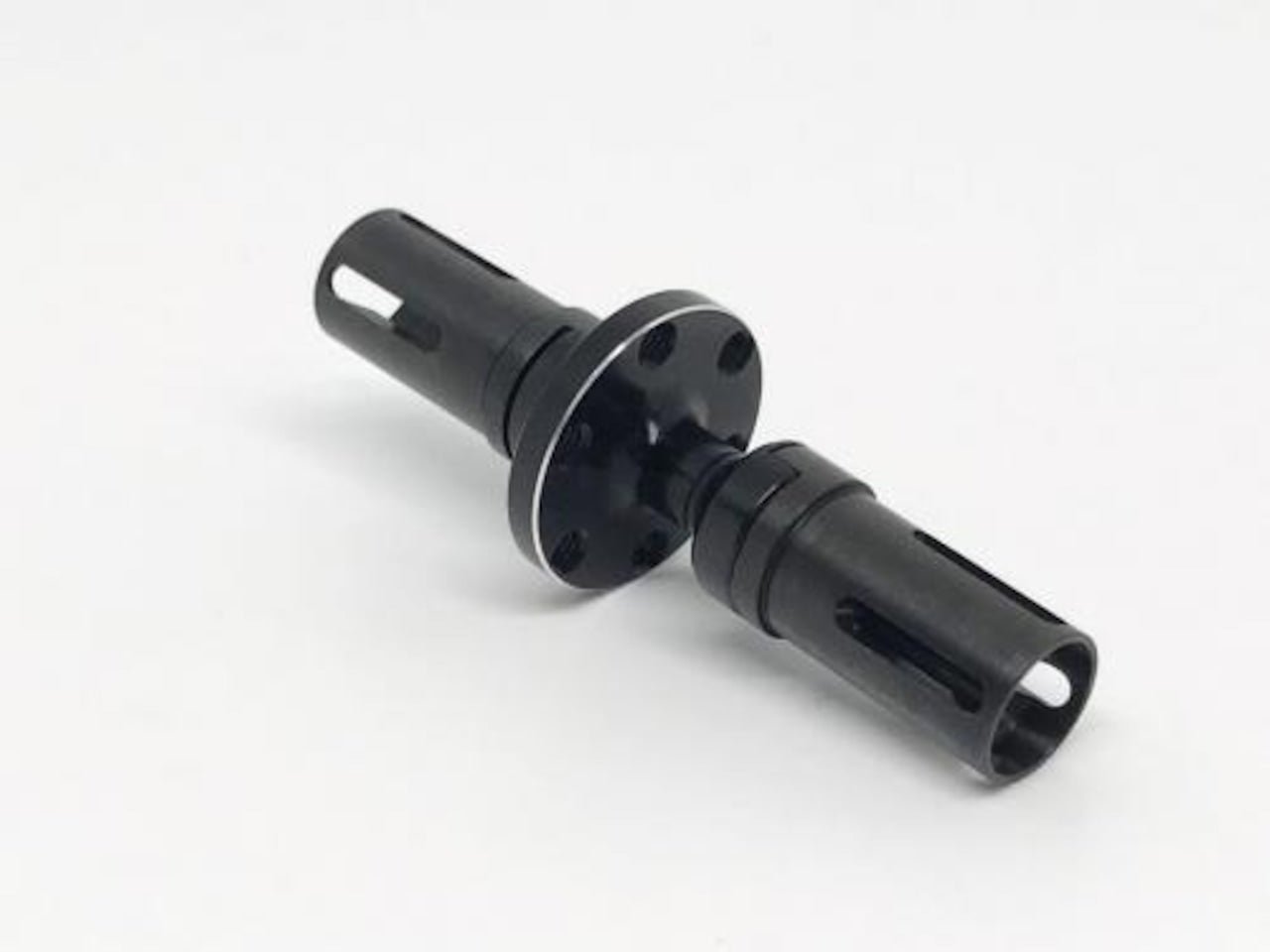

Solid type differential axle set.
By making the cup and housing metal, it supports higher rotation and higher load.
[R31W212] One-Way & Solid Ring Gear is suitable for Ring Gear.

By combining this product with the [R31W243] gear spacer set, it is possible to support our company's bevel gears from 10T to 16T. (*)

*A separate φ10×0.1mm shim is required to adjust the clearance between the gearbox and bearings and to fine-tune the final backlash.

〇 Regarding the number of bevel gear teeth sold separately [R31W243] Gear Spacer Set

10T→0 sheets
11T→1 sheet
12T→2 sheets
16T→6 sheets
* Prepare an M3 button screw with a length that matches the thickness of the spacer.

*For bevel gears larger than 16T, [R31W201] GRK rigid axle set (compatible with standard 16T to 18T) is applicable.

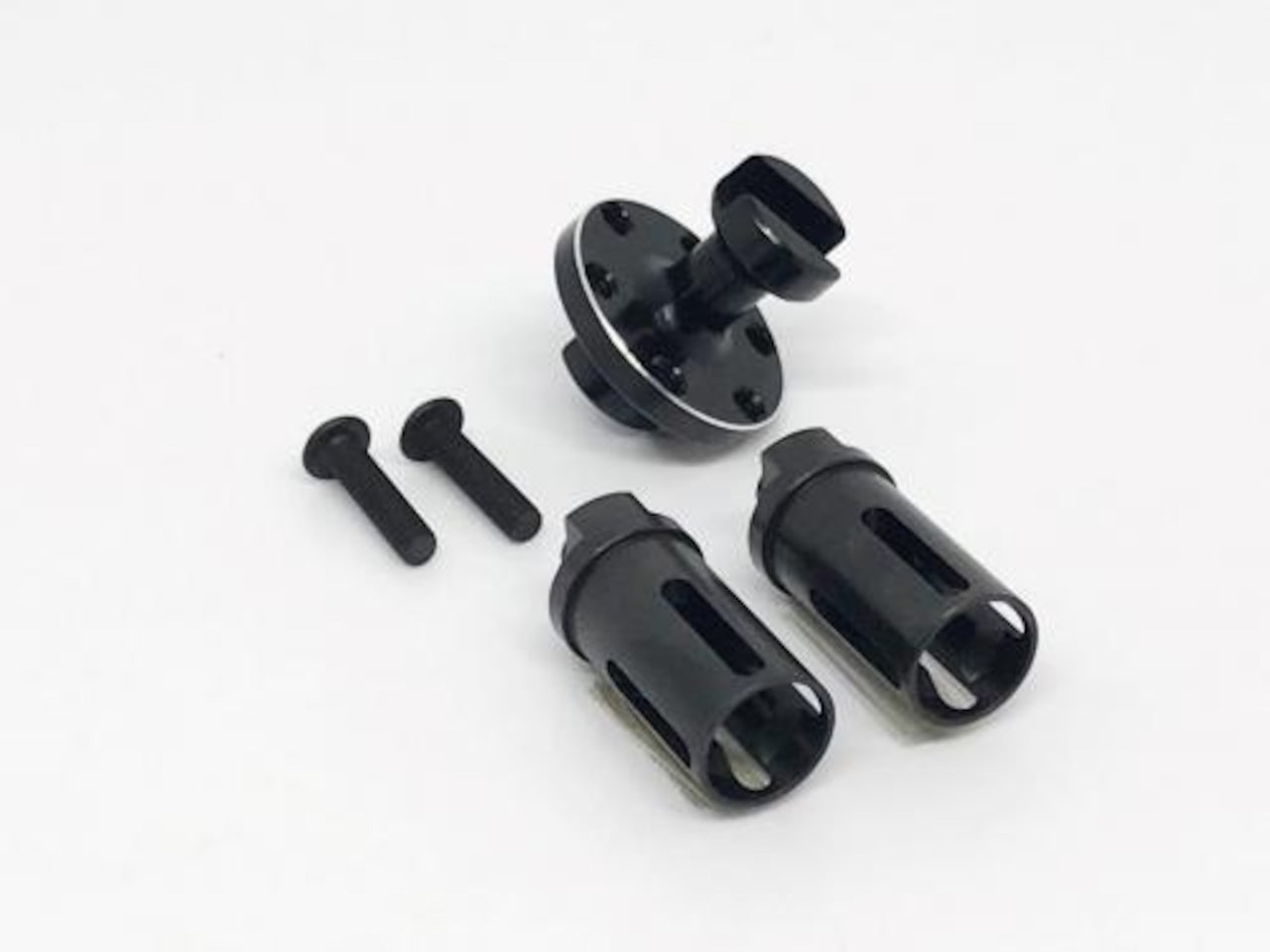

〇 Contents
・GRK solid cup (for deceleration) x 2
・ GRK solid housing (for deceleration) x 1
・M3 x 12 button screw x 2
