Inset rear knuckle / Purple

〇 commodity explanation

By making the tire rotation axis (axle axis) act inward, the response of the input installation pressure from the arm can be increased.

Not only can it be used with the separately sold [R31S322] adjustable geometry lower arm set, but it can also be attached to the GRKGS2EVO standard resin H arm.

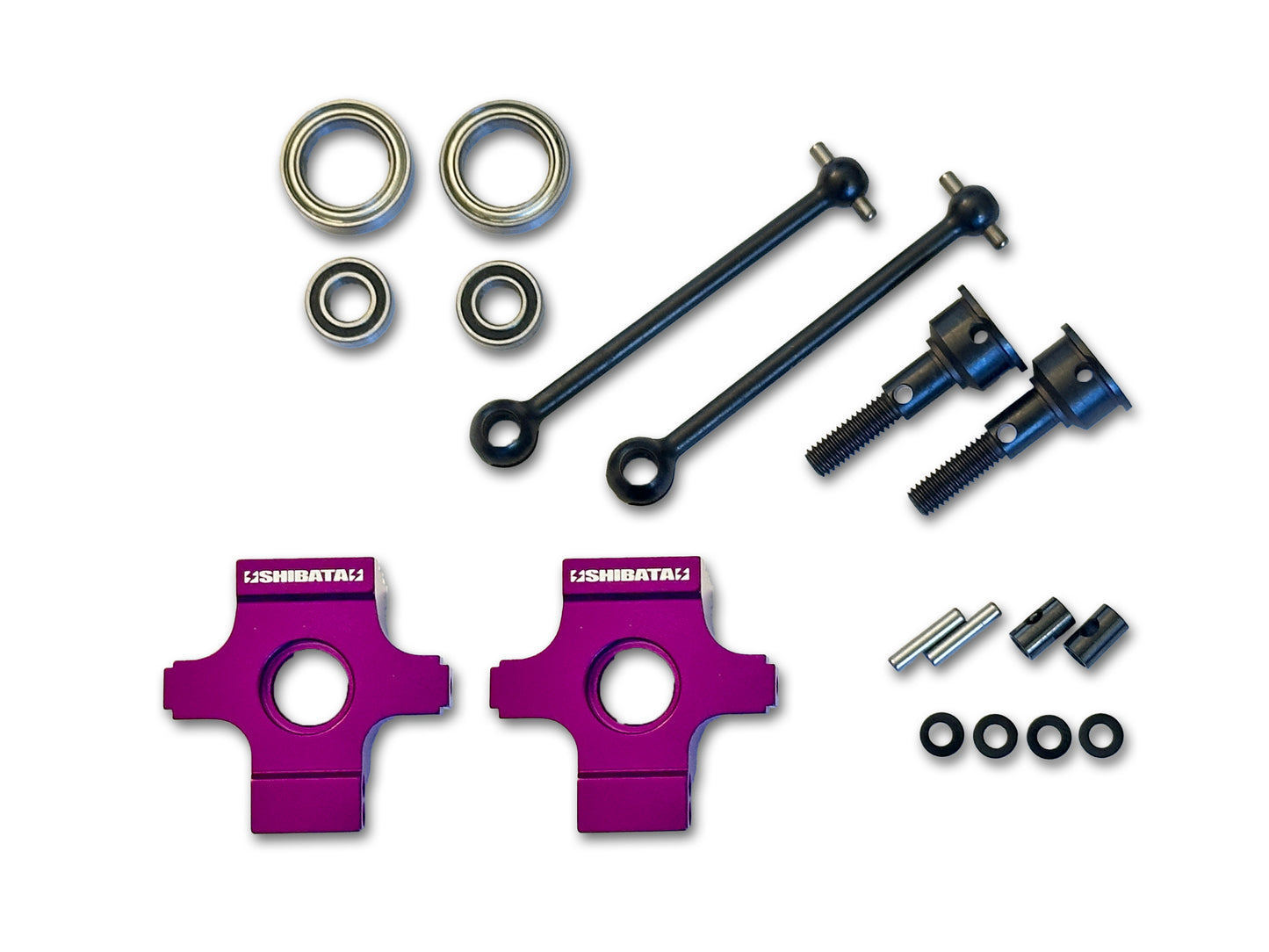

〇 commodity contents

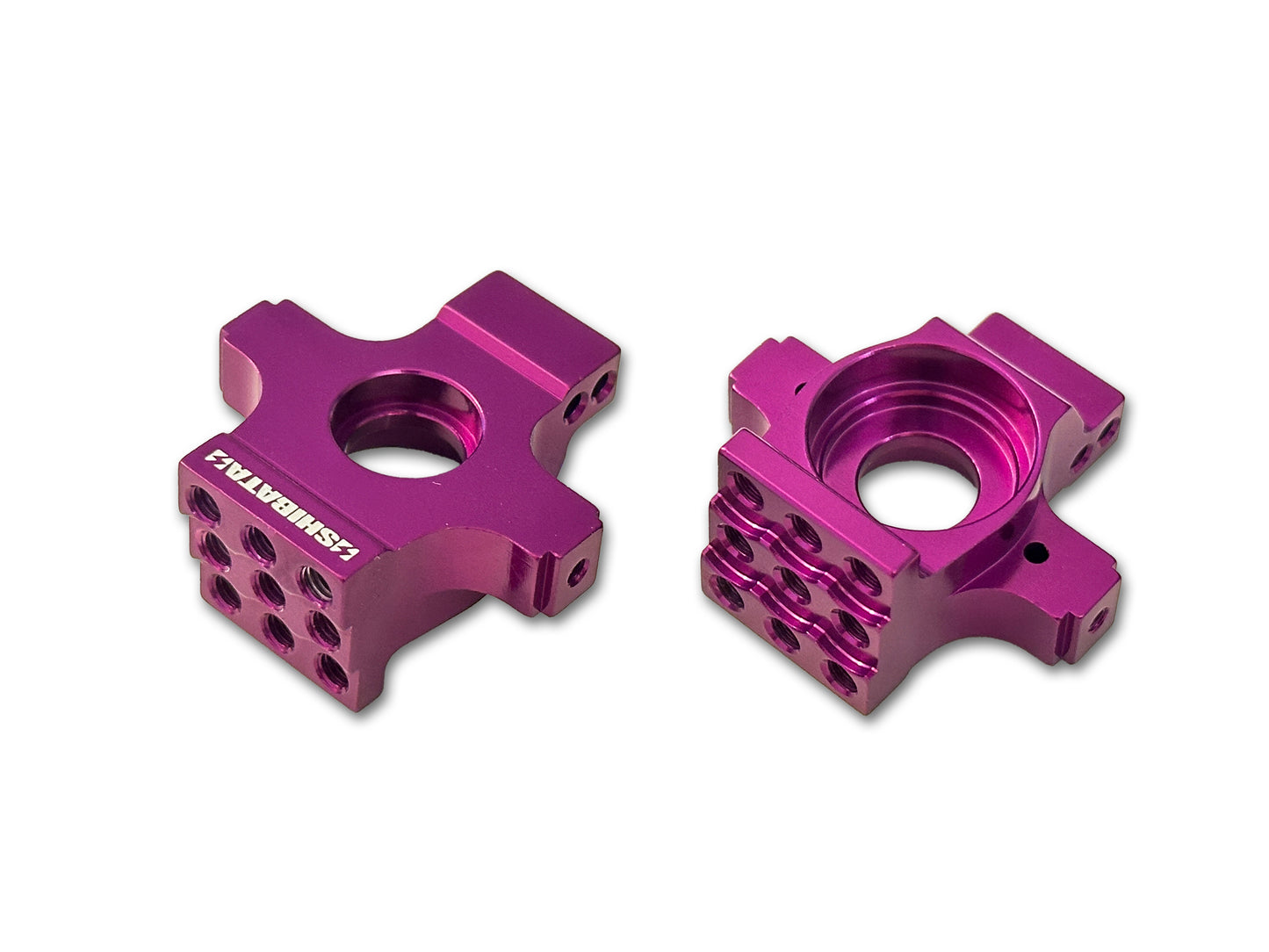

・Inset aluminum knuckle body (2 pieces)
・[R31M138] 1050×3mm bearing (2 pieces)
・[R31M103] 1510 bearings (2 pieces)
・[R31S005] King pin adjustment collar M2.6×0.5mm aluminum spacer (4 pieces)
・[R31W435] Universal shaft 48mm (2 pieces)
・[R31W310] GRK3AWD Cross Spider 2mm (2 pieces)
・[R31W311] GRK3 AWD cross spider pin 2x10mm (2 pieces)
・[R31W309] GRK3 front axle (2)

〇 Precautions when installing this product on the standard resin H arm of the GRK global series.
Although it is possible to install the knuckle alone
When changing the hub to [R31W339] GRK brake rotor
The back of the rotor will interfere with the rib part of the lower arm.
(It is possible to install a brake rotor by removing the rib part, but we do not recommend it.)

If you would like to install a brake rotor, we recommend installing it together with the [R31S322] Adjustable Geometry Lower Arm.
