S-wide Reversible-sus mount / Black
S-wide Reversible-sus mount / Black
SKU:R31S324BK
〇Product description

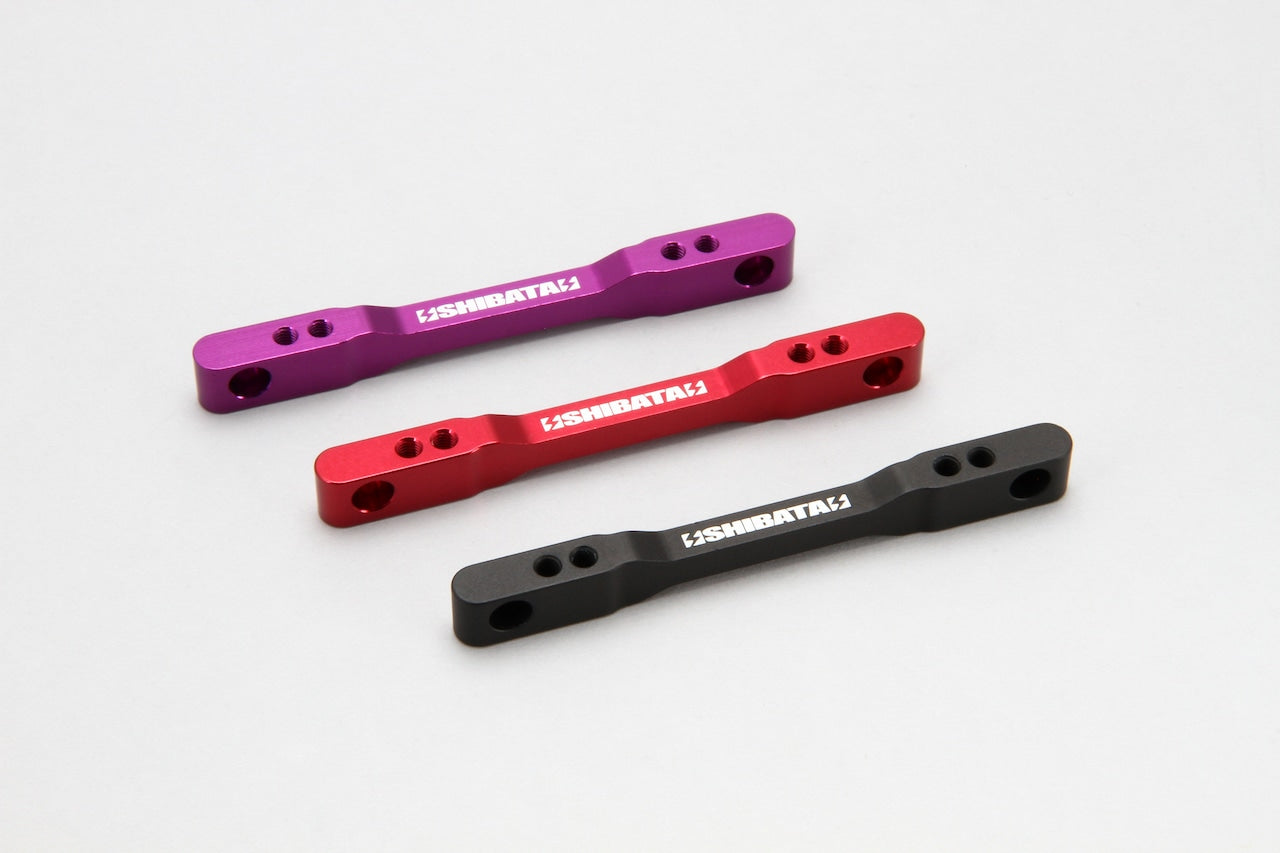

This is an aluminum suspension mount that is significantly wider by 10mm on each side (total 20mm) compared to the GRK aluminum suspension mount (R31S304) that is installed as standard on GRK5.
Adopts a "reversible function" that allows you to lower the lower arm mounting height by 1mm by switching the top and bottom.
In combination with the separately sold (R31S325) super wide adjustable suspension block.
Correspond.
A new M3 hole has been added to the suspension mount body so that pillow balls can be installed.
The pillow ball mounting height can be changed using a spacer.
Compared to toe control plates, which have limited mounting hole locations.
It is now possible to perform a wide range of A-arm settings.
〇Applicable car models

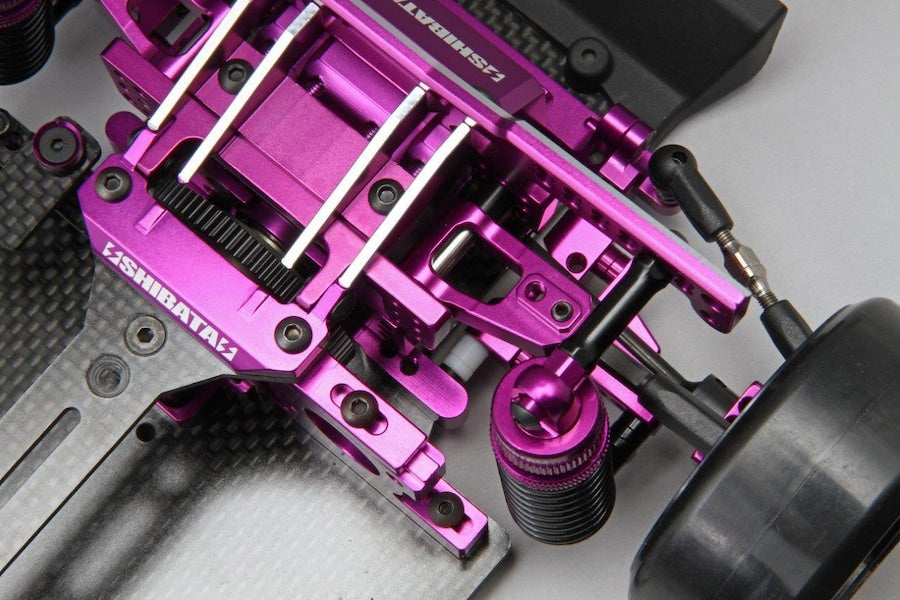

Compatible with all suspension mount mounting holes on all GRKs. (*)
*Limited to vehicles equipped with carbon chassis.
(In the resin main chassis, mounting points other than RR interfere with the ribs of the chassis.
It cannot be installed. )
